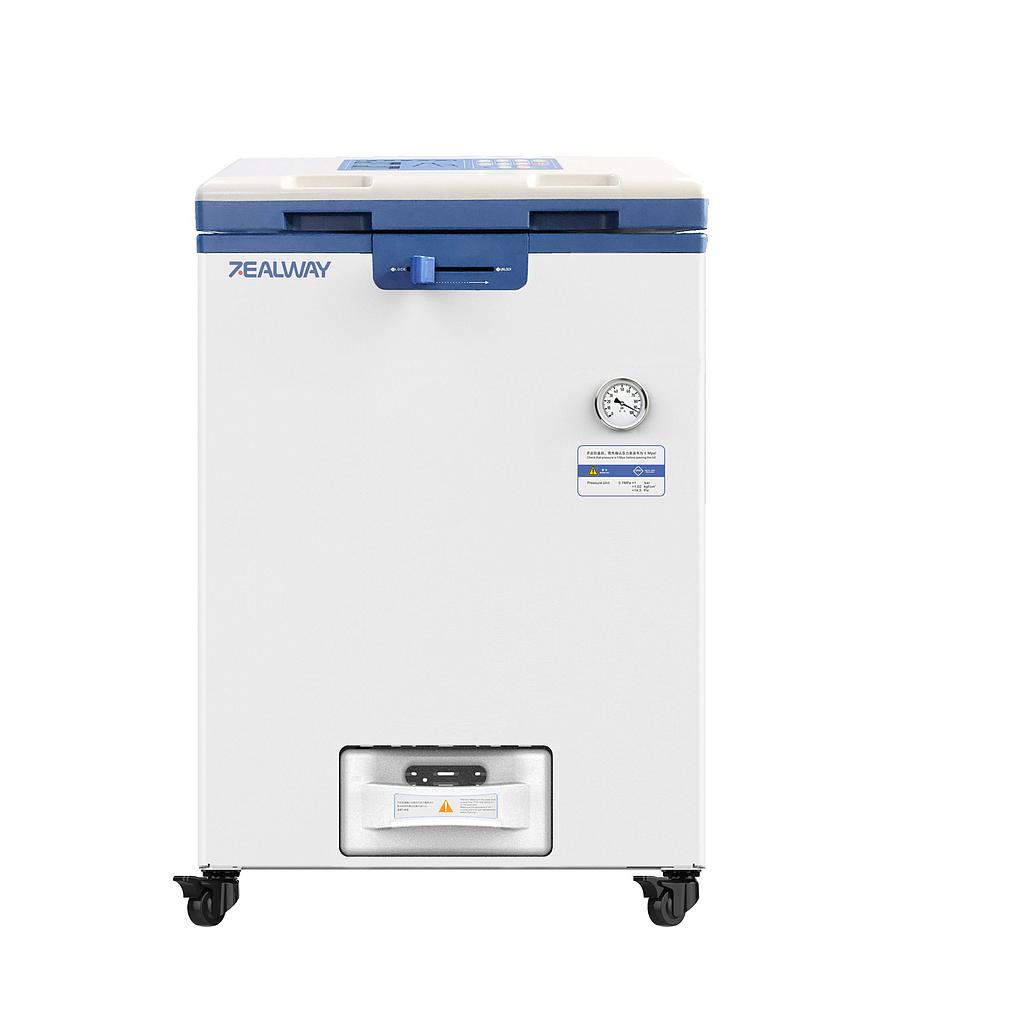

Autoclave 110L

Main Features:
System Automatic Drying and Water Filling
Sterilization cycle : Liquid, Liquid with warming, Solid, Wrapped instrument, Fabric, Rubber, Fast, Waste, Agar melting, Self defined
Sterilization process can be pre-set and completed automatically.
Simple and easily understandable control panel to show the sterilization temperature, sterilization time and drying time
at the sametime, pressing separate keys to set the temperature and time makes theoperation easier.
System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and
optimalsterilization effects.
LCD screen clearly shows the dynamic sterilization process.
13 error detection procedures to monitor the normaloperation of the instrument.

Safety Devices:
Self-induction interlocking devicesto avoid risk of misuse
Dual overpressure protection system:upon detection of any abnormal pressure, system will relieve pressures or
disconnect power supplies.
Over temperature protection system:power supply will be disconnected for protection upon detection of over temperature.
Dry scorch protection system: powersupply will be disconnected for protection upon detection of overlow waterlevel
Cover checking system: system can automatically check the locking of the cover, if the cover is not tightlylocked,
the autoclave can’t be started.
Electric leakage, over current andshort circuit protection: system will disconnect the power supply to avoid
anelectricity shock or other accidents.
Unique anti-scald cover and bench:nice look and avoid causing corrosions and scald.

Technical Data :
Model difference: SR: Automatic Water Feeding + Cooling Fan + Drying
Capacity(L): 110
Dimension(L*W*H,mm): 660x831x1180(DF/DR)
Chamber dimension(Dia*H,mm): φ400x895
Rate power supply(w): 4600
Stainless steel basket(Dia*H,mm): (φ360x250)x3
Power requirement: 220V,32A，50/60HZ
Temperature accuracy: 0.1℃
Working environment: 5-45℃，relatively humidity 10%-85%
Chamber material: SUS 304
Sterilization temperature: 105-138℃
Sterilization time range: 1-6000 minutes
Melting temperature: 60-100℃
Melting time range: 1-6000 minutes
Warming temperature: 45-60℃
Warming time range: 1-9999 minutes
Drying(only for SR model): 1-300 minutes, drying temperature 80-140℃
Cooling lock OPEN temperature: 40-80℃ for liquid cycle, 40-99℃ for other cycles
Sterilization cycle number: SR can save up to 60 cycles
Exhaust mode: Automatic internal discharging ,with a steam collecting bottle inside. Exhaust speed can be selected by 6 levels
Lid opening way: Flip open
Steam collector and water tank: SR: embedded steam collector and 28L water tank
Preset range of timer: Can be preset and auto start up to 6 days in advance
Display range of pressure gauge: -0.1-0.5Mpa
Pressure: Max working pressure:0.27Mpa,design pressure:0.35Mpa
Controller: “Inspiration” fast speed microcomputer controller
